Description

SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

External Testing Certification: ce

High-concerned chemical: None

Is Batteries Included: No

Origin: Mainland China

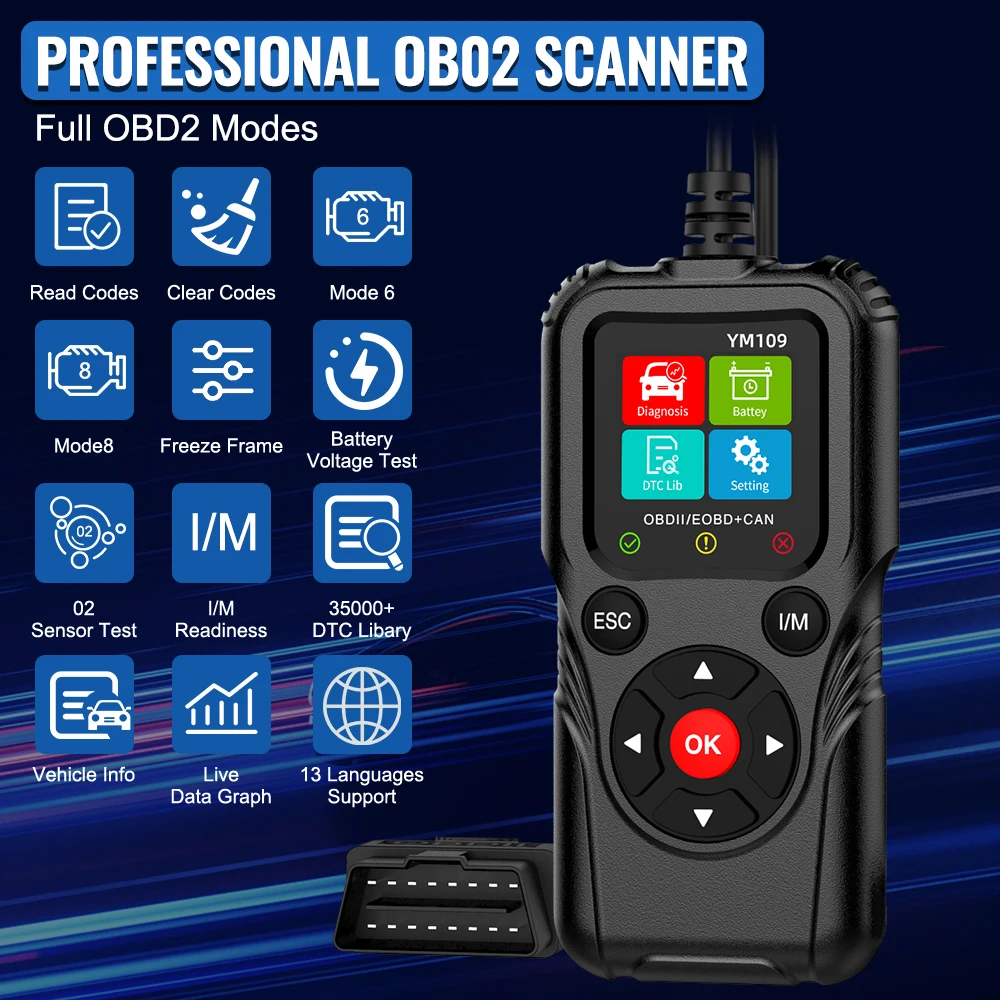

Functions:

• 100% brand new and high quality.

• Supports all 10 modes of OBD II functionality

• Diagnose and clear trouble codesViews freeze frame data

• Displays monitor and I/M readiness status(emissions)

• Retrieves vehicle information (VIN, CALID and CVN)

• Displays live O2 sensor test data

• Enhanced OBD Il mode 6

• EVAP system leak test

• Reads live PCM data stream

• Estimates battery life and monitoring battery voltage

Specification:

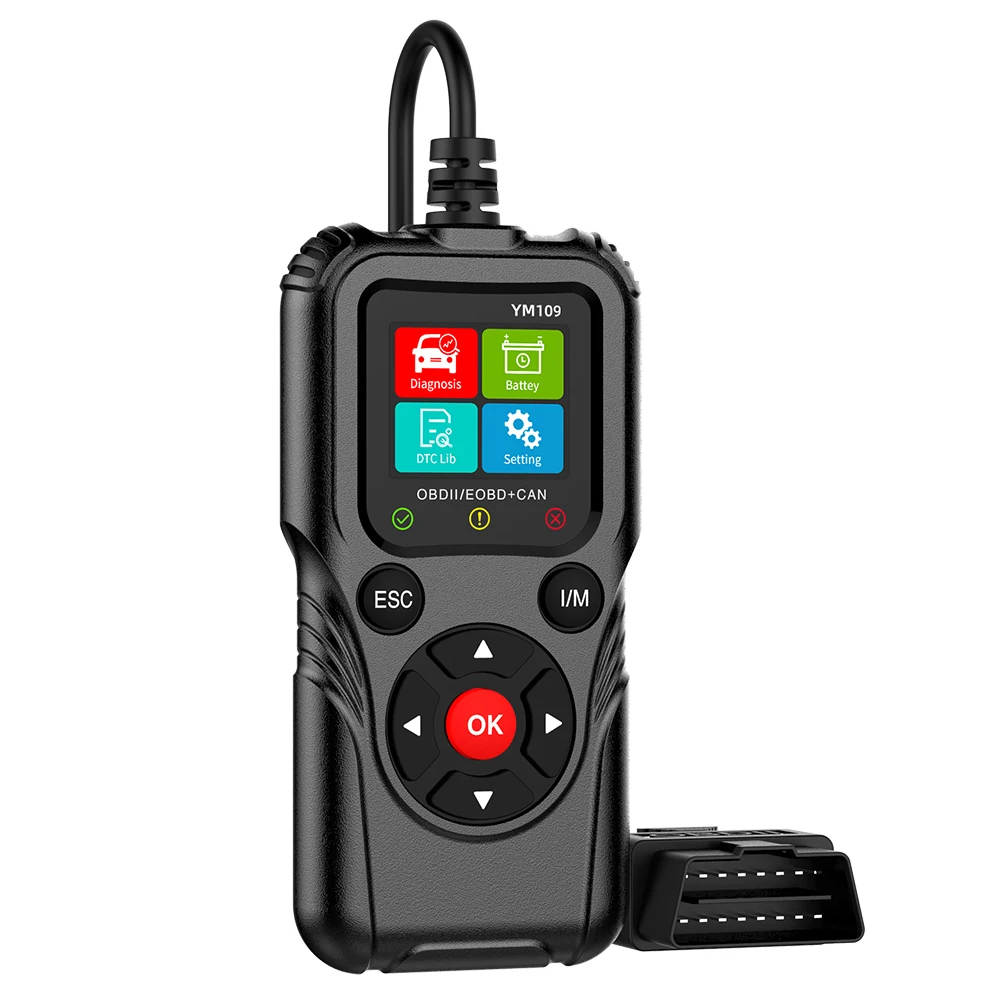

• Type: Car OBD2 Diagnostic Tools
• Model: YM109
• Color: Black
• Material: Plastic,Electronic components

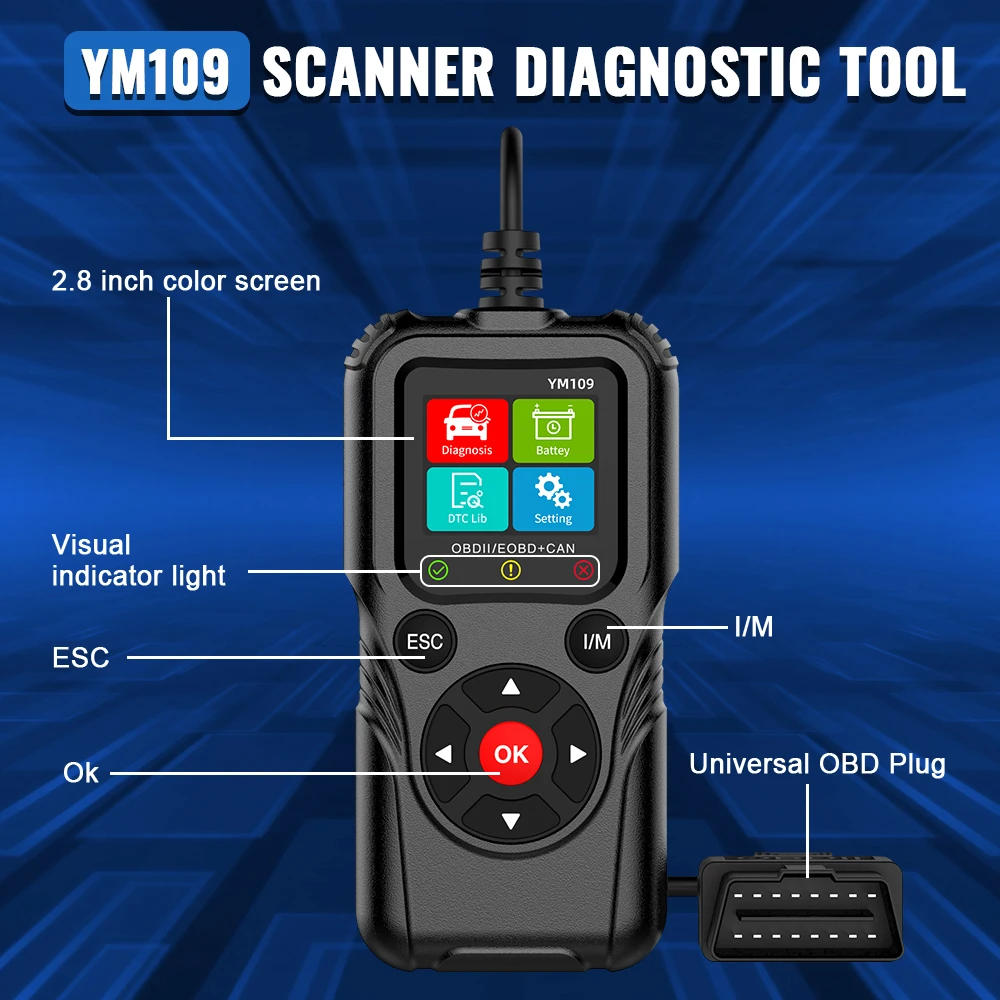

• Display: 1.77 inches, 160×128 pixel TFT display
• Power: 5V-20V
• Operating Temperature: 0℃ to 60 ℃ / 32°F to 140°F
• Storage Temperature: -20℃ to 70℃ / -1°F to 158°F
• Size: as pictures show
• Support OBDII/EOOBD nine standard protocols to read the car engine fault code
• Clear the engine fault code
• Freeze frame of automobile fault
• I/M readiness status
• Vehicle information
• Automobile real-time data flow
• Real-time curve of automobile data
• Mode 6 test (component system test)
• Oxygen sensor test
• Parts test

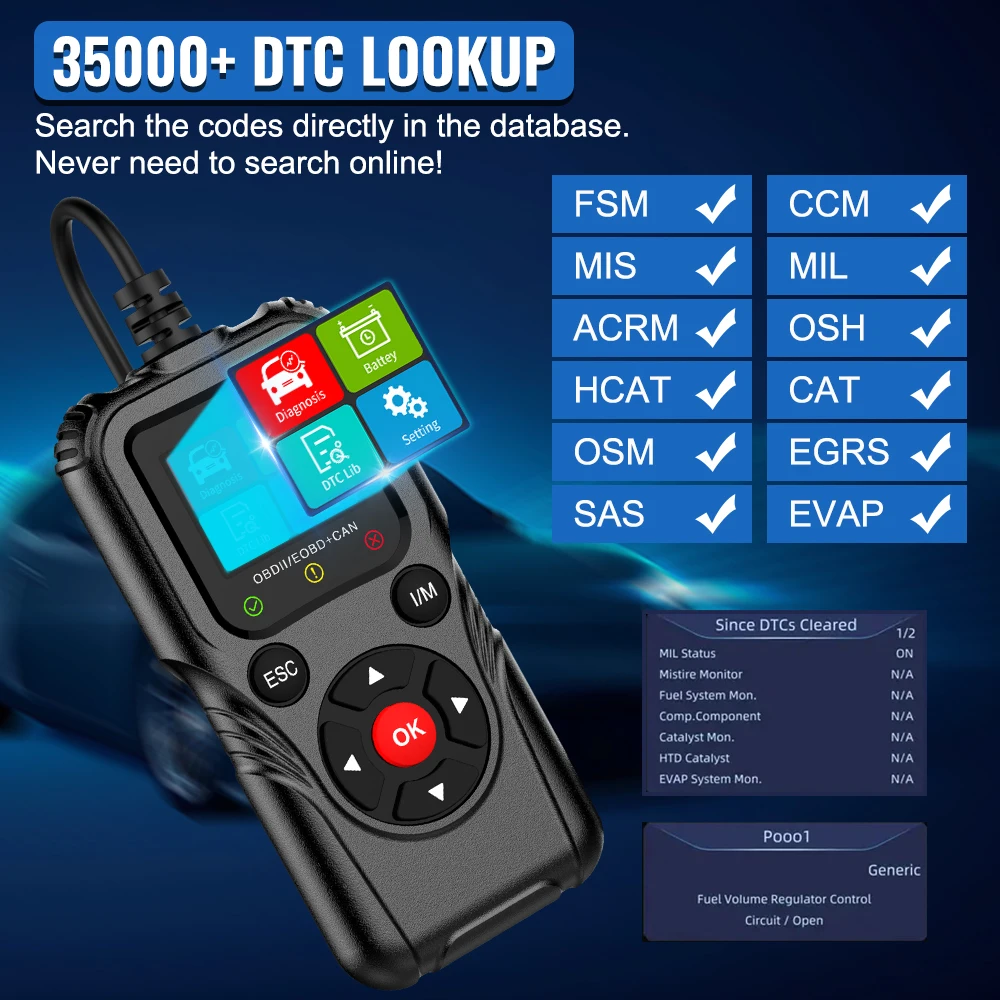

• Fault code query
• Vehicle battery voltage reading
• Vehicle battery voltage monitoring
• Vehicle battery life assessment (exclusive features)
• The product built-in 13 languages (Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)

Support Protocol:

• SAE J1850 PWM (41.6Kbaud)
• SAE J1850 VPW (10.4Kbaud)
• ISO9141-2(5 baud init, 10.4Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11bit ID, 500 Kbaud)
• ISO15765-4 CAN (29bit ID, 500 Kbaud)
• ISO15765-4 CAN (11bit ID, 250 Kbaud)
• ISO15765-4 CAN (29bit ID, 251 Kbaud)

Package Included:

• 1 x OBD2 Scanner

• 1 x English Manual
